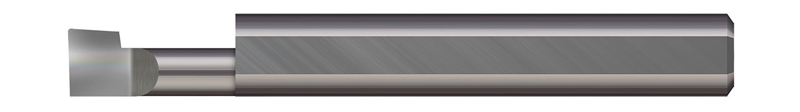

Left Hand - 0.1320" Min Bore DIA x 0.700" Max Bore Depth x 0.1250" (1/8) Tooth Width x 0.0300" Projection x 2.00" (2) OAL x 0.0060" Radius - AlTiN Coated
- Item Code: MIC BBL-120700X
- Brand: Micro 100
- Mfg Part No: BBL-120700X
- Unit Size: 1
Suggested Retail Price: $31.30/EA
Description
0.1320" Min Bore DIA x 0.700" Max Bore Depth x 0.1250" (1/8) Tooth Width x 0.0300" Projection x 0.1875" (3/16) Shank DIA x 2.00" (2) Overall Length x 0.0060" Radius - Carbide Boring Standard Left Hand, AlTiN Coated
Tech Specs
Back To Top| Radius | 0.0060" |
|---|---|
| Centerline Offset | 0.0263" |
| Projection | 0.0300" |
| Neck Diameter | 0.0900" |
| Face Dimension | 0.094" |
| Tooth Width | 0.1250" (1/8) |
| Min Bore Diameter | 0.1320" |
| Split Length | 0.140" (9/64) |
| Shank Diameter | 0.1875" (3/16) |
| Max Bore Depth | 0.700" |
| Overall Length | 2.00" (2) |
| Coating | AlTiN |
| Hand Direction | left hand |
| Brand | Micro 100 |
| Tool Product Family | Standard - Boring Tools |
| Profile | Radius |
