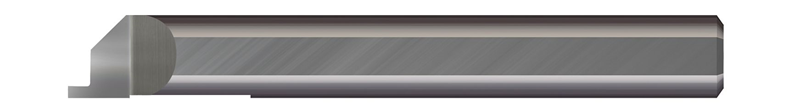

Right Hand - 0.3125" (5/16) Min Bore DIA x 0.240" Max Bore Depth x 0.0300" Tooth Width x 0.0500" Projection x 2.50" (2-1/2) OAL - AlTiN Coated
- Item Code: MIC FG-312-030X
- Brand: Micro 100
- Mfg Part No: FG-312-030X
- Unit Size: 1
Suggested Retail Price: $45.20/EA
Description
0.3125" (5/16) Min Bore DIA x 0.240" Max Bore Depth x 0.0300" Tooth Width x 0.0500" Projection x 0.3125" (5/16) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide Face Grooving Right Hand, AlTiN Coated
Tech Specs
Back To Top| Tooth Width | 0.0300" |
|---|---|
| Projection | 0.0500" |
| Face Dimension | 0.156" (5/32) |
| Centerline Offset | 0.1563" (5/32) |
| Max Bore Depth | 0.240" |
| Overall Reach | 0.240" |
| Split Length | 0.240" |
| Min Bore Diameter | 0.3125" (5/16) |
| Shank Diameter | 0.3125" (5/16) |
| Overall Length | 2.50" (2-1/2) |
| Coating | AlTiN |
| Hand Direction | right hand |
| Brand | Micro 100 |
| Tool Product Family | Standard - Grooving Tools |
| Profile | Square |
