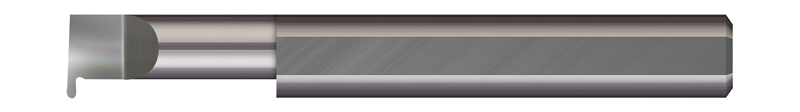

Right Hand - 0.3970" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0460" Tooth Width x 0.1000" Projection x 2.50" (2-1/2) OAL x 0.0230" Radius - AlTiN Coated
- Item Code: MIC FR-046-12X
- Brand: Micro 100
- Mfg Part No: FR-046-12X
- Unit Size: 1
Suggested Retail Price: $71.65/EA
Description
0.3970" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0460" Tooth Width x 0.1000" Projection x 0.3750" (3/8) Shank DIA x 2.50" (2-1/2) Overall Length x 0.0230" Radius - Carbide Full Radius Grooving Right Hand, AlTiN Coated
Tech Specs
Back To Top| Radius | 0.0230" |
|---|---|
| Tooth Width | 0.0460" |
| Projection | 0.1000" |
| Split Length | 0.185" |
| Centerline Offset | 0.1875" (3/16) |
| Face Dimension | 0.188" (3/16) |
| Neck Diameter | 0.2700" |
| Shank Diameter | 0.3750" (3/8) |
| Min Bore Diameter | 0.3970" |
| Max Bore Depth | 0.750" (3/4) |
| Overall Length | 2.50" (2-1/2) |
| Coating | AlTiN |
| Hand Direction | right hand |
| Brand | Micro 100 |
| Tool Product Family | Standard - Grooving Tools |
| Profile | Full Radius |
