Right Hand - 0.0650" Min Bore DIA x 0.438" Max Bore Depth x 0.0050" Projection x 1.50" (1-1/2) OAL - AlTiN Coated
- Item Code: MIC HBB-070437X
- Brand: Micro 100
- Mfg Part No: HBB-070437X
- Unit Size: 1
Suggested Retail Price: $28.75/EA
Description

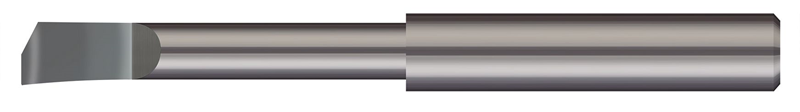

0.0650" Min Bore DIA x 0.438" Max Bore Depth x 0.0050" Projection x 0.1250" (1/8) Shank DIA x 1.50" (1-1/2) Overall Length - Carbide Boring Helical Back Rake Right Hand, AlTiN Coated
Tech Specs
Back To Top| Projection | 0.0050" |
|---|---|
| Centerline Offset | 0.0350" |
| Neck Diameter | 0.0600" |
| Face Dimension | 0.063" (1/16) |
| Min Bore Diameter | 0.0650" |
| Rotational Min Bore Diameter | 0.070" |
| Shank Diameter | 0.1250" (1/8) |
| Split Length | 0.140" (9/64) |
| Max Bore Depth | 0.438" |
| Overall Length | 1.50" (1-1/2) |
| Coating | AlTiN |
| Hand Direction | right hand |
| Brand | Micro 100 |
| Tool Product Family | Standard - Boring Tools |
| Profile | Chamfer |
