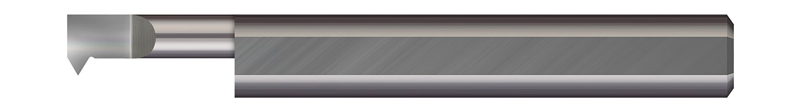

Right Hand - 0.3120" (5/16) Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0810" Tooth Width x 0.0700" Projection x 2.50" (2-1/2) OAL x 0.0020" Radius #14-40 - AlTiN Coated
- Item Code: MIC IT-2901000X
- Brand: Micro 100
- Mfg Part No: IT-2901000X
- Unit Size: 1
Suggested Retail Price: $53.00/EA
Description
0.3120" (5/16) Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0810" Tooth Width x 0.0700" Projection x 0.3125" (5/16) Shank DIA x 2.50" (2-1/2) Overall Length x 0.0020" Radius #14-40 - Carbide UN Thread Right Hand, AlTiN Coated
Tech Specs
Back To Top| Radius | 0.0020" |
|---|---|
| Offset | 0.040" |
| Projection | 0.0700" |
| Tooth Width | 0.0810" |
| Centerline Offset | 0.1338" |
| Face Dimension | 0.156" (5/32) |
| Split Length | 0.210" |
| Neck Diameter | 0.2150" |
| Min Bore Diameter | 0.3120" (5/16) |
| Shank Diameter | 0.3125" (5/16) |
| Max Bore Depth | 1.000" (1) |
| Thread Size | 14-40 |
| Overall Length | 2.50" (2-1/2) |
| Angle per Side | 30 |
| Included Angle | 60 |
| Coating | AlTiN |
| Hand Direction | right hand |
| Brand | Micro 100 |
| Tool Product Family | Standard - Threading Tools |
| Profile | Radius |
